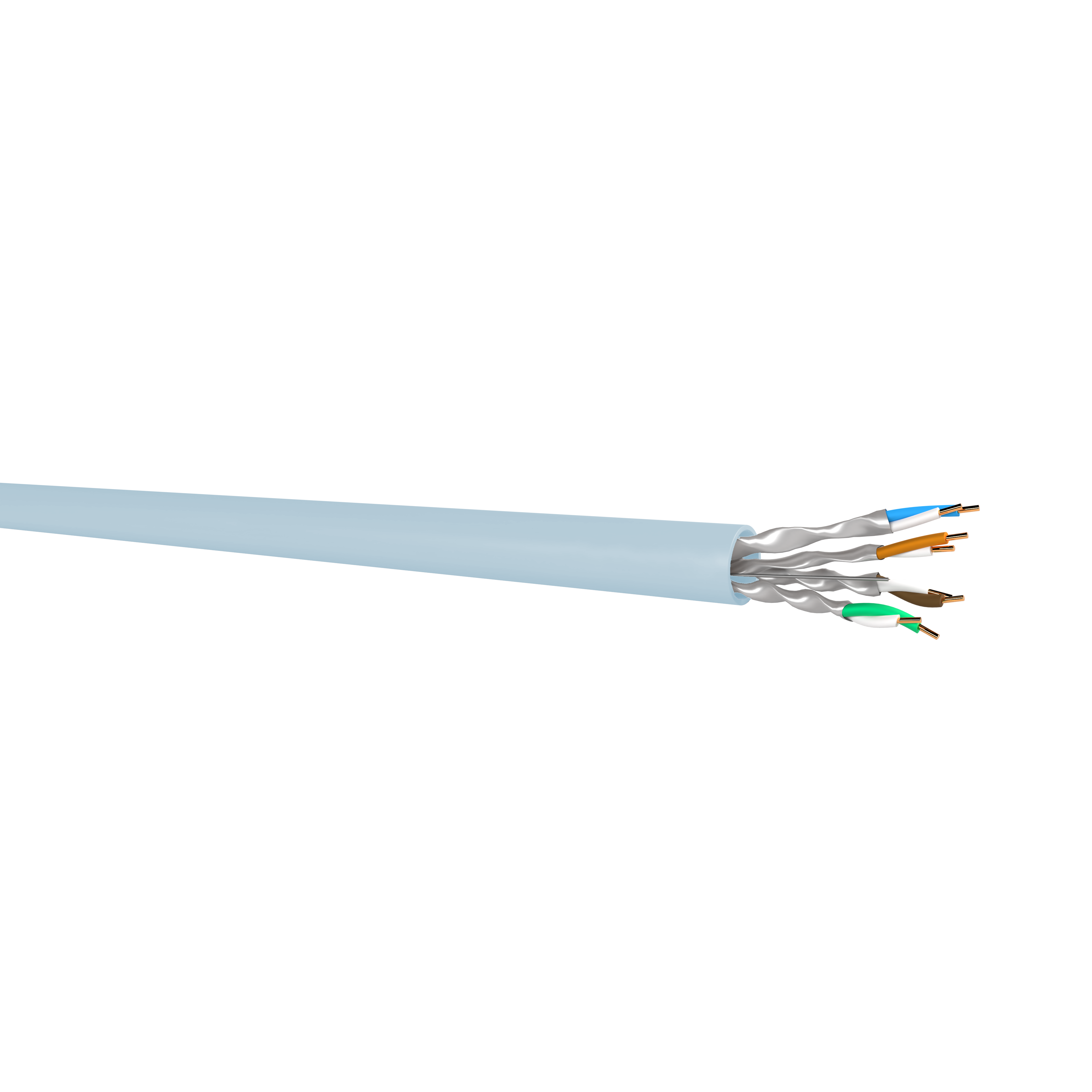

CÂBLE CAT6A U/FTP AWG23 LSZH

4 paires & 2x4 paires

Univers: Cuivre
Gamme :Câbles réseau

Ce câble Cat6a dépasse les normes de l'industrie.

Le câble U/FTP blindé individuellement est disponible dans diverses options d'emballage. Il prend en charge une performance de lien de Classe EA jusqu'à 90 mètres, idéale pour des applications comme le 10GBASE-T et le Power Over Ethernet (PoE). Le câble comprend quatre paires, chacune enveloppée individuellement dans une bande d'aluminium/polyester pour un blindage efficace.

La gaine LSZH (Low Smoke Zero Halogen) du câble est résistante au feu et émet un minimum de fumée, répondant aux normes CPR Dca, Cca ou B2ca.

CÂBLE CAT6A U/FTP AWG23 LSZH

Unik

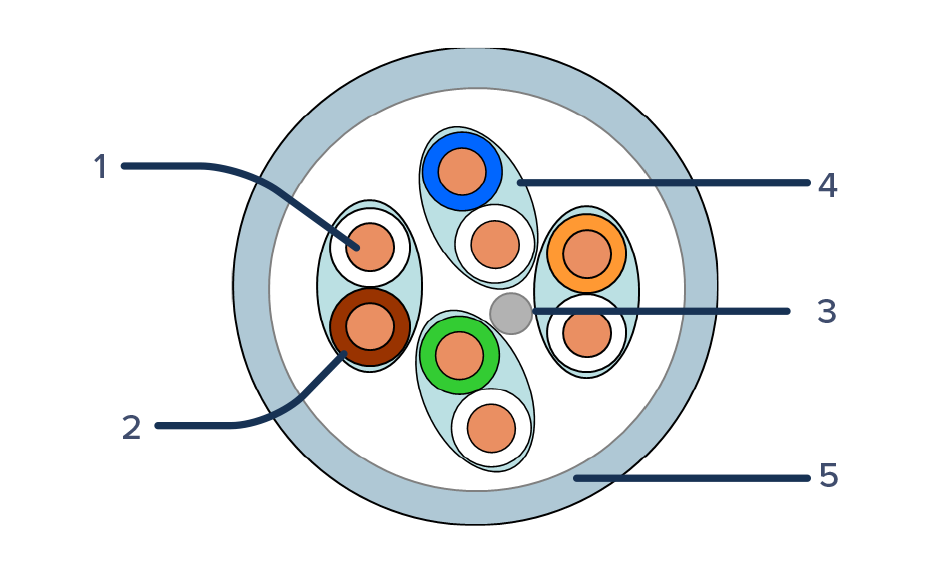

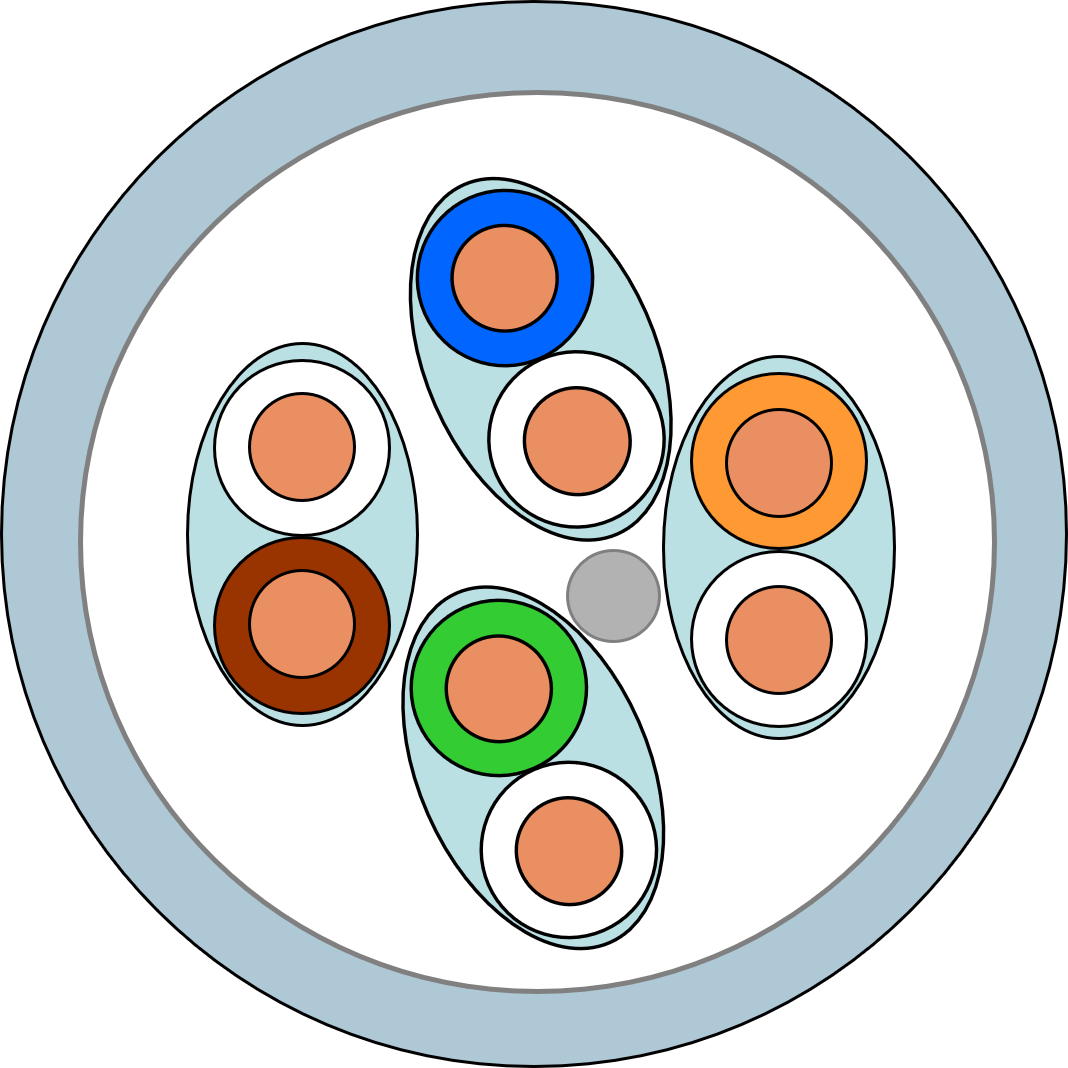

  • 1. Conducteur : AWG23
  • 2. Isolation : PE expansé SFS
  • 3. Drain : Cuivre étamé
  • 4. Blindage individuel : Ruban Al/Pes
  • 5. Gaine : LSZH bleu RAL 5024

Unik

  • Conforme à la norme ISO 11801 Classe Ea et vérifié par ETL Intertek
  • Gaine LSZH Dca, Cca ou B2ca EN50575

Fiches techniques & Docs

Applications et performances

Les conformités

    • Standard câble
    • IEC 60156-5:2020 Cat6a
    • Système
    • ISO/IEC 11801-1:2017 Classe Ea
    • TIA 568.2-D Cat6a
    • Applications
    • IEEE 802.3 : 10G BASE T
    • IEEE 802.3 POE : Type 1 à 4 jusqu’à 90w

Les références

Informations de commande

    • Catégorie
    • Cat6a
    • Cat6a
    • Cat6a
    • Cat6a
    • Cat6a
    • Blindage
    • U/FTP
    • U/FTP
    • U/FTP
    • U/FTP
    • U/FTP
    • Référence
    • KCUF6A4PZHDBL5
    • KUFF6A4PZHDBLB
    • KCUF6A8PZHDBL5
    • KCUF6A4PZHCBL5
    • KCUF6A4PZHB2BL5
    • Désignation
    • Cat6a Cable 4 paires U/FTP awg23 LSZH Dca
    • Cat6a Cable 4 paires U/FTP awg23 LSZH Dca

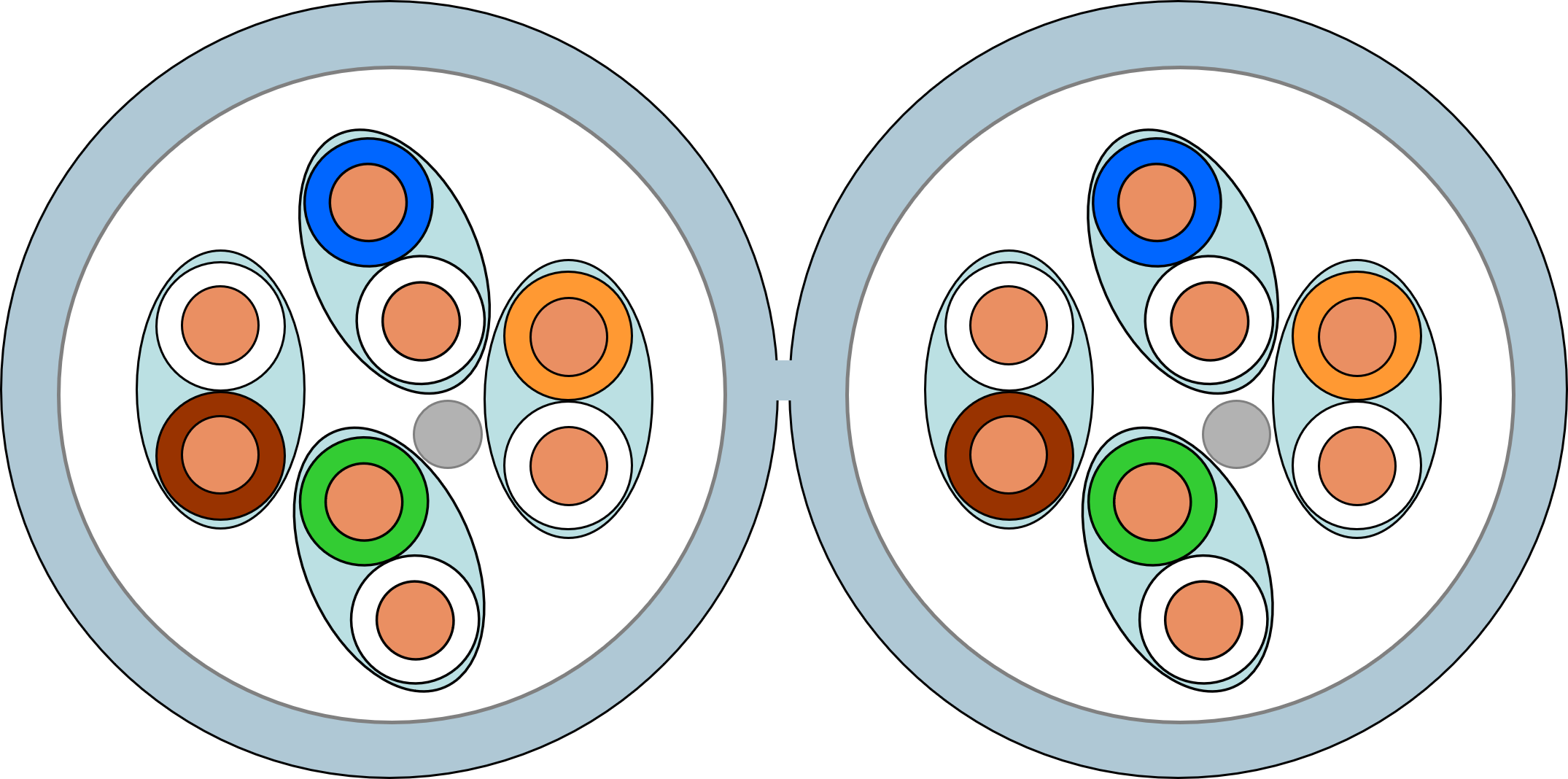

    • Cat6a Cable 2x4 paires U/FTP awg23 LSZH Dca
    • Cat6a Cable 4 paires U/FTP awg23 LSZH Cca
    • Cat6a Cable 4 paires U/FTP awg23 LSZH B2ca
    • Diamètre (nom)
    • 7.1mm
    • 7.1mm
    • 7.1 x 14.6 mm
    • 7.4mm
    • 7.4mm
    • Poids (Kg/km)
    • 50
    • 50
    • 102
    • 53
    • 53
    • Conditionnement
    • D500M
    • B305M
    • D500M
    • D500M
    • D500M
